This kit contains every fuel line that you need to plumb a sprint car cock pit from the fuel tank to the firewall and back to the fuel tank. This kit features our ProPlus-grade hose, engineered from a highly compressed, non-porous matrix that resists fuel permeation and diffusion. Its smooth internal tube delivers optimal flow rates, minimal pressure drop, and easy clean-out. Its external convolutions enhance hoop strength for superior vacuum resistance while allowing tight bend flexibility. Every fuel line is thoroughly pressure-tested at 250 psi to ensure quality and reliability before it leaves our facility. To complete everything you may need within the cockpit/fuel system please review the optional parts to this kit also (unions for main-pill holder, bulkhead fittings for firewall, fuel block/manifold, and main -12 fuel filter), all kit options are pictured.

Multiple configurations are possible with this kit. If you would like to use union fittings in your fuel manifold (as pictured) you may do so and mount your high speed bypass and main pill holder as we have pictured here, those are an option you will need to add in the purchase of your kit (just select the "two union fittings" button in our menu for $19.99). If you would like to use two short -6, 5.5" lines with straight-straight fittings to mount your high speed bypass and main pill holder to the manifold, those are included in the kit already.

KIT COMPONENTS

-12 fuel tank to filter line (14" straight to 45 fittings)
-12 fuel filter to pump line (22" straight to 45 fittings)
-8 fuel manifold to tank return line (45" 90 to 90 fittings)
-6 fuel pump to fuel switch line (16" 90 to 90 fittings)
-6 fuel fuel switch to firewall bulkhead main fuel line (12" straight to 90 fittings)
-6 secondary bypass firewall bulkhead to fuel manifold line (18" straight to 90 fittings)
-6 main pill holder to fuel pump line (18" straight to 45 fittings)
-6 high speed bypass to fuel pump line (18" straight to 45 fittings)
-6 main pill holder to fuel manifold (5.5" straight to straight fittings)
-6 high speed bypass to fuel manifold (5.5" straight to straight fittings)

KIT OPTIONS (All pictured)

King -12 shut off style main fuel filter
King fuel manifold/block and bracket
(2) -2 straight to straight union fittings for main pill holder and high speed bypass
(2) firewall bulkhead fittings for -6 main fuel line and secondary bypass line
King -6 main fuel shut off

Sprint Car Cockpit Fuel Line Kit

Name: Sprint Car Cockpit Fuel Line Kit
Brand: XRP
Price: 800 USD
Availability: InStock

$800.00

King -12 Fuel Filter

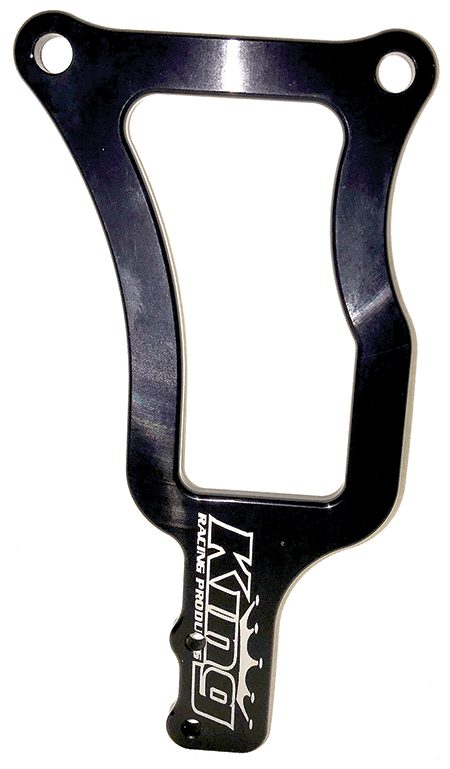

King Fuel Manifold and Manifold Bracket

Two -6 Firewall Bulkhead Fittings

Two -6 Main Pill Holder/Hi-Speed Union Fittings

King -6 Main Fuel Shut Off

Quantity

You may return any non defective or undamaged item for 30 days after the purchase. Before making your return you must fill out a return merchandise authorization form. Non defective products are subject to a 10% restocking fee. The customer is responsible for all return shipping costs. Returns are for exchange or in house credit.

All returning merchandise must be "new" in its original packaging, unused, unaltered and unchanged from its original state. Special products must be returned with all instructions, manuals, warranty cards, etc. We are not responsible for incoming freight damage.

Non defective hose assemblies are not returnable. Lines may be rebuilt or adjusted to length with a new fitting or end as length allows. All hose assemblies are pressure tested after build, before they leave our facility.
